Operation Manual LST T003

Short Description:

Please read this manual carefully before using this machine,and keep it for future reference


Advantages

Application

Mainly used for shearing, peeling and tensile testing of geomembrane, geotextile and plastic film materials.

Precautions

Precautions1
It is forbidden to disassemble the tensiometer without permission. If necessary, please confirm that it has been turned off and unplug the power plug before disassembling it, so as to avoid being hurted by the internal charged exposed power line or components.
Precautions2
In order to ensure the safety of users and reliable operation of tensiometer, stabilized voltage power supply and leakage protector must be installed at the construction site.
Precautions3
Ensure that the protective earth connection is good.
Precautions4
The voltage rating stated on the tool must correspond with the line/ mains voltage (AC220V).
Precautions05
Please take it lightly, any collision may result in inaccurate measurements or damage.
Precautions6
It is forbidden to collide with the drive shaft and the movable plate.
Precautions7
Protect the tensiometer from damp and wet.

Parameter

Model
LST-T004
Voltage
230 V
Frequency
50 Hz
Jaw spacing
5-300 mm
Tensile load
max 2000 N
Range
max 100 mm
Size (L × W × H)
700×220×120 mm
Net weight
12 Kg

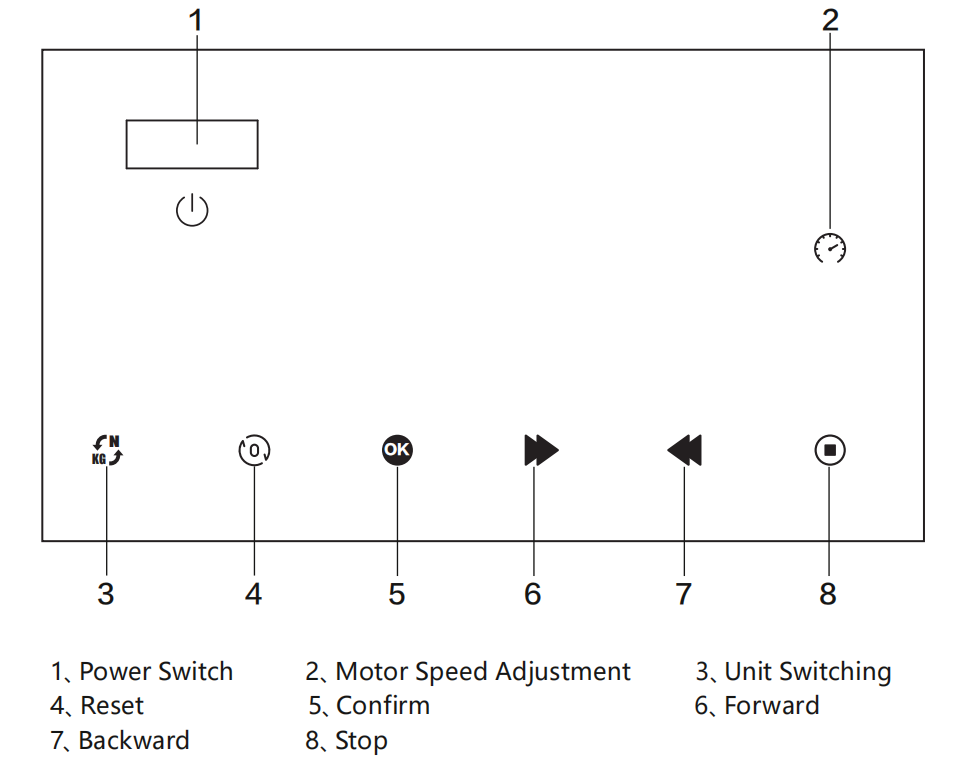

LST-T004 Keybord

30

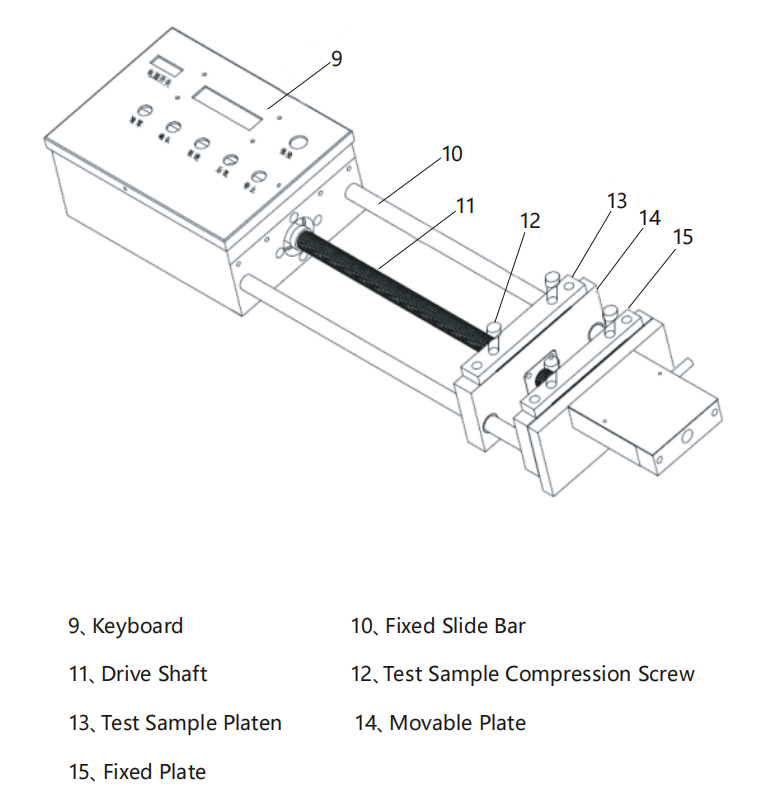

LST-T004 Main Parts

31

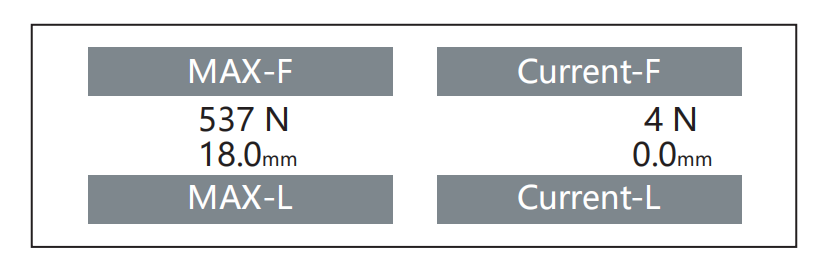

LST-T004 Screen Data

32
1、The data below MAX-F is the maximum tensile force displayed by the broken material in this test, which can be retained all the time.The unit of data is N (can also be displayed in KGS, which can be switched by the unit switching (3)).
2、The data above MAX-L is the maximum walking distance displayed in this tensile material test, which can be retained all the time. The unit of data is mm.
3、The data below Current-F is the current tensile data. The data unit is N (can also be displayed in KGS, which can be switched by the unit switching (3)).
4、The data above Current-L is the current distance data. The unit of data is mm.

LST-T004 Operations

1、Open the cover of the tensiometer, take out the power cord, check whether the power cord is in good condition, and connect to the power supply
2、Turn on the machine power switch(1).
3、Prepare base material samples for testing.
4、Use a screwdriver to loosen the 4 test sample compression screws (12) on the movable plate(14), and then insert the prepared base material sample into both sides of the machine respectively.
5、Use screwdriver to tighten the 4 test sample compression screws (12)on the movable plate() until the base material sample is completely clamped.
6、Check if the fixed slide bar(10), the drive shaft(11), and the movable plate (14) are free of any foreign objects that hinder the operation; press the reset (4)button to reset the previous residual data to zero; press the forward (6)button again,the machine starts to run. You can see that 4 lines of data change on the display screen. When the base material sample is completely broken, press the stop(8) button.
7、After the test, you can see the test data displayed on the display screen. Please confirm whether the test sample is qualified according to the corresponding standard.
8、Loosen the 4 test sample compression screws (12)and take out the base material sample ; if there is no test, please press the backward (7) button to return the movable plate (14).
9、After the test is completed, turn off the power switch(1) and unplug the power plug. If possible, please add some oil to the fixed slide bar (10) and the drive shaft(11).

Quality Assurance

· This product guarantees a 12-month shelf life from the day it is sold to consumers. We will be responsible for failures caused by material or manufacturing defects. We will repair or replace defective parts at our sole discretion to meet the warranty requirements.
· The quality assurance does not include damage to wearing parts, damage or defects caused by improper handling or maintenance, and damage caused by falling products. Irregular use and unauthorized modification should not be covered by the warranty

Repairs and Spare Parts

· It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair.
· Only original Lesite spare parts are allowed.
