Flexible And Multiple Application Roofing Welding Machine LST-WP4

Short Description:

The new generation of roofing hot air welder WP4 offers more application diversity.

The welding of high quality thermoplastic waterproof membranes (PVC,TPO,EPDM, ECB, EVA, etc.) can be realized welding quickly in the gutter of the roof, near the edge of gutter, and near the edge of parapet or in other narrow spaces. The maintenance free brush-less motor with the WP4 enhanced version gives it high performance and durability, with overall performance far superior to that of comparable products.

One machine realizes welding in multiple scenes, with a wide range of applications, which brings higher efficiency to welding.

Adopt closed-loop control technology (digital display + main board control) to ensure stable parameters and ensure the overall welding quality.

Small and flexible, light weight, high power.

The welding width is 40mm, which can meet the customized service of different widths in small batches.

Small orders accepted.

To meet small batch customized services.

Spare parts

Includes 1pc extra 230v/4000w heating element, 5 pcs fuses ( for circuit board),1pc anti-hot pad, 1pc steel brush for clearing welding nozzle, 1pc steel operation handle, 1pc additional counterweight, 1pc screwdrivers and 4pcs wrenches, 1 pc English Manual.

Inner packing

Machine is locked with screws inner the metal carry case.

Use plastic bubble to pack parts like spare parts bag, handle to advoid collisions during transportation.


Advantages

Specifications

Application

Video

Manual

Advantages

Removable front wheel
The front wheel is movable from left to right, especially suitable for welding in various narrow spaces.

Outdoor power supply design
Specially designed for outdoor power supply, the power supply voltage range  of 180-240V can still be used normally.

Self-balance design of the pressure wheel
Self-balance design of the pressure wheel ensures the welding quality of uneven surface.

Brushless motor
The maintenance-free brush-less motor gives it high durability, no need to replace the carbon brush, and the service life can reach 6000-8000 hours.


  • Previous:
  • Next:

  • Model LST-WP4 LST-WP412
    Voltage 230V 230V
    Power 4200W 4200W
    Temperature 50~620℃ 50~620℃
    Welding speed 1-10m/min 1-10m/min
    Welding seam 40mm 40mm
    Dimensions (length × width × height) 557x316x295mm 557x316x295mm
    Net weight 28kg 28kg
    motor Brush 12
    Air volume Not adjustable 70-100%
    Certification CE CE
    Warranty 1 year 1 year

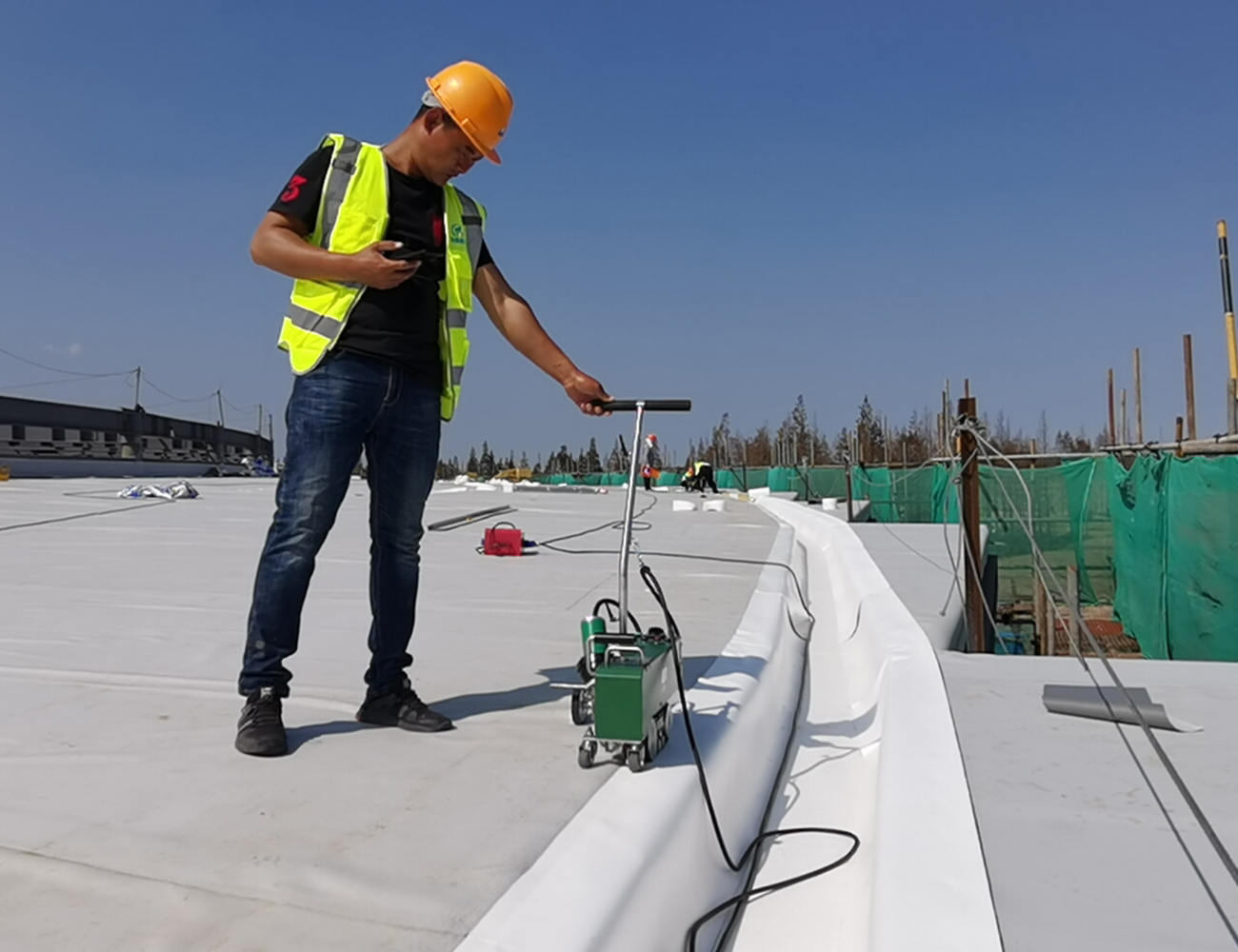

    Gutter edge welding
    LST-WP4

    6.LST-WP4

    download-ico LST-WP4
